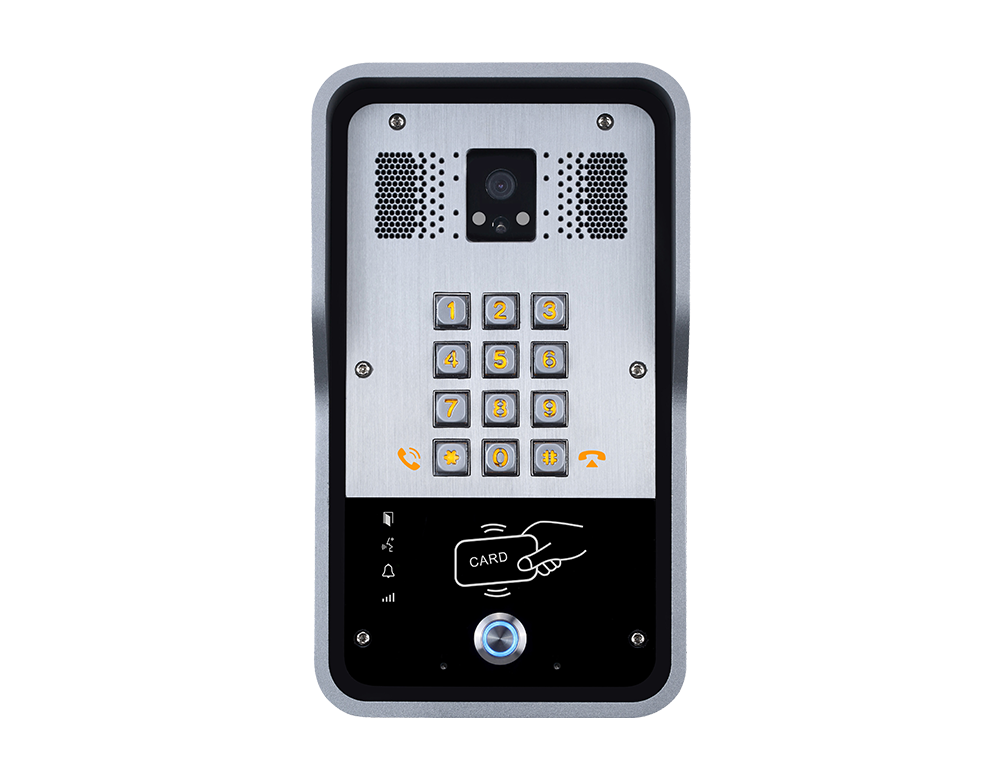

i31S – Fanvil SIP Video Door Phone

Datasheet

The i31S – Fanvil SIP Video Door Phone, developed by Fanvil, combines the expertise and experience of Fanvil IP phone technology to offer a versatile and reliable communication solution. Utilising standard IP/RTP/RTSP protocols for voice transmission ensures broad compatibility with major platforms like 3CX, Asterisk, Broadsoft, and Elastix. Designed for outdoor use, the i31S features robust mechanical construction with IP65 and IK10 ratings for protection against dust, water, and collisions. This economical device integrates access control, intercom, and broadcasting functionalities.

Highlights:

• SIP Protocol Compatibility: Supports RFC3261 and major IPPBX/IMS platforms.
• Robust Protection: IP65 waterproof and IK10 anti-collision ratings.
• Temperature Adaptability: Operates in temperatures from -40°C to +70°C.
• Status Indication Icon
• All-in-One Functionality: Access control, intercom, and broadcasting.
• Access Control: DTMF, password, RFID/IC card, and indoor switch.
• High-Quality Communication: Built-in 3W speaker with Acoustic Echo Canceller (AEC).
• HD Camera: Features backlight compensation for clear video.
• Online Maintenance and Management

Features:

• 2 SIP Lines: Supports SIP 2.0 (RFC3261) and related RFCs.
• PoE Enabled
• Duplex Hands-Free Communication
• Auto Answer
• Access Control Methods: DTMF, password, RFID card, indoor switch.
• Open Door Records: Supports up to 200,000 entries.
• Remote Access List: Supports up to 5,000 entries.
• RFID/IC Cards: Supports up to 5,000 entries.
• Electric Lock Options: Internal or external power supply.
• Customisable DSS Keys
• Network Time Synchronization
• Action URL / Active URI Remote Control

Audio Features:

• Narrowband Codecs: G.711a/u, G.723.1, G.726-32K, G.729AB.
• Wideband Codec: G.722.
• Duplex Intercom with AEC: 96ms tail-length.
• DTMF Support: In-band, out-of-band (RFC2833), SIP INFO.

Video Features:

• Sensor: 1/2.7” color CMOS, 2 Megapixels.
• Video Codec: H.264.
• Resolution: 1280×720@25fps (mainstream), 704×576@25fps (sub-stream).
• Viewing Angle: 112° (H), 84° (V).
• Minimum Illumination: 0.1Lux, with infrared illumination support.

Networking/Protocols:

• PoE Support: 802.3af.
• DNS: Primary and secondary servers.
• RTSP, SNTP Client, VPN: L2TP/OpenVPN.
• SRTP, HTTP/HTTPS: Web pages.
• QoS: 802.1p/q, DSCP.
• MD5 Authentication, Web Filter
• IP Configuration: DHCP, static, PPPoE.
• STUN Support

Deployment & Maintenance:

• Auto-Provisioning: FTP/TFTP/HTTP/HTTPS/DHCP/TR069/SIP PNP.
• Web Management Portal
• Web-based Packet Dump
• Configuration Backup/Restore
• Entry Log Export
• Access Table Export/Import
