TA800 NEOGATE 8 Port Gateway – Analogue (FXS)

TA800 NEOGATE 8 Port Gateway – Analogue (FXS)

TA800 NEOGATE 8 Port Gateway – Analogue (FXS)

User Guide

TA Series Data Sheet

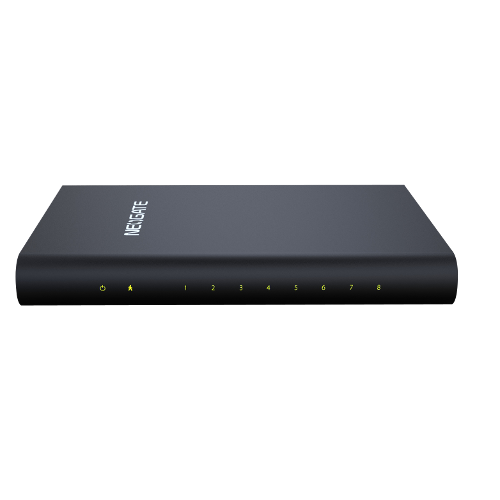

Neogate TA800 is a 8 Port Analog (FXS) Gateway – 2 Year Warranty

TA800 is a 8 Port Analog (FXS) Gateway.

Ideal for small to medium enterprises that wish to connect a legacy PBX to the NBN.

Features 3 trigger message wait. Also suits 4 Line EnGenius.

TA RANGE SPECIFICATIONS

  • TA400/800/1600/2400/3200:
  • 4/8/16/24/32 RJ11 FXS ports
  • TA4 10/TA810/TA1610: 4/8/16 FXO ports
  • Protocol: SIP (RFC 3261), IAX2
  • Transport: UDP, TCP, TLS,SRTP
  • Voice Codec : G.711 (alaw/ulaw), G.722,G.726, G.729A, GSM, ADPCM, Speex
  • Quality Enhancement ITU-T G.168 LEC, dynamic Jitter Buffer, VAD, CNG, PLC
  • DTMF Mode:RFC2833, SIP INFO, In-band

FEATURES

  • Fully Compliant with SIP and IAX2
  • Flexible calling rules
  • Reliable fax performance with T.38
  • Provides high-quality voice Connect Legacy PABX with a compression with industry standard codecs
  • Line echo cancellation for 32, 64 or 128 ms echo delays

SOLUTIONS

  • FXS Endpoints for IP-PBX
  • Connect Legacy Phones with SIP Trunking
  • Connect Legacy PABX with a local IP-PBX
  • Connect Legacy PABX with a remote IP-PBX
  • PSTN Trunking for IP-PB
  • Multi-site Solution
