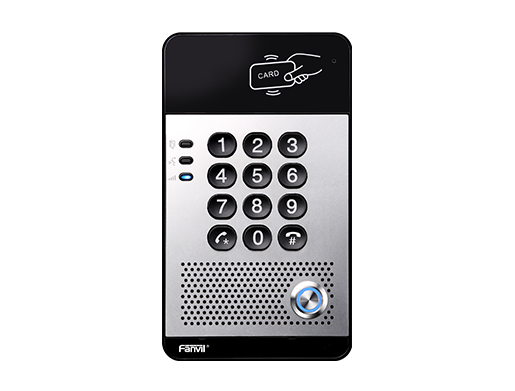

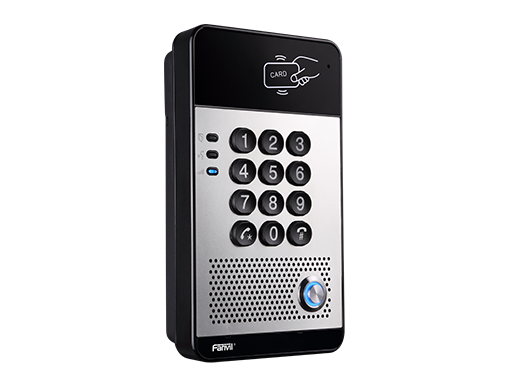

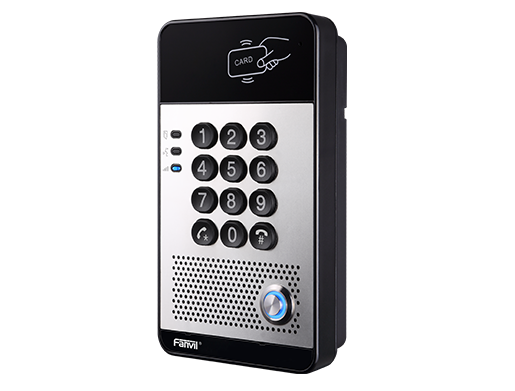

i20S – Fanvil SIP Audio Door Phone

i20S – Fanvil SIP Audio Door Phone

Datasheet

The i20S – Fanvil SIP Audio Door Phone leverages extensive IP phone expertise to provide a versatile and reliable communication solution. Standard IP/RTP/RTSP protocols ensure broad compatibility with major platforms such as 3CX, Asterisk, Broadsoft, and Elastix. Designed for indoor use, the i20S features a robust IP65-rated construction for dust and water protection and integrates access control, intercom, and broadcasting functionalities.

Highlights:

  • SIP Protocol Compatibility: Supports RFC3261 and major IPPBX/IMS platforms.
  • Access Control: DTMF, password, RFID/IC card, and indoor switch.
  • All-in-One Functionality: Access control, intercom, and broadcasting.
  • High-Quality Communication: Built-in 3W speaker with Acoustic Echo Canceller (AEC).
  • Status Indication Icon
  • Online Maintenance and Management

Features:

  • 2 SIP Lines
  • PoE Enabled
  • Duplex Speakerphone
  • Intelligent DSS Keys
  • Wall-Mounting
  • Integrated RFID/IC Card Reader and Indoor Switchgear
  • Access Control: DTMF, password, RFID/IC card, indoor switch
  • Industrial Certifications: IP65, CE/FCC

Call and Door Phone Features:

  • Intercom and Speed Dial
  • Auto-Answering
  • Open Door Log (200,000 entries)
  • Access Table (5,000 entries)
  • Programmable DSS/Soft Keys
  • Network Time Synchronization

Audio and Networking:

  • Narrowband and Wideband Codecs: G.711a/u, G.723.1, G.726-32K, G.729AB, G.722
  • AEC and Hands-Free Mode
  • VAD, CNG, BNE, PLC
  • Dynamic Adaptive Jitter Buffer (up to 300ms)
  • DTMF Support: In-band, out-of-band (RFC2833), SIP INFO
  • PoE, Static/DHCP/PPPoE IP Configuration
  • Network Access Control (802.1x), VPN (OpenVPN/L2TP), VLAN (802.1p/q), QoS (DSCP)

Protocols: SIP2.0, RTP, RTCP, SRTP, STUN, DHCP, PPPoE, 802.1x
