E20S Compact Push Button Emergency Station

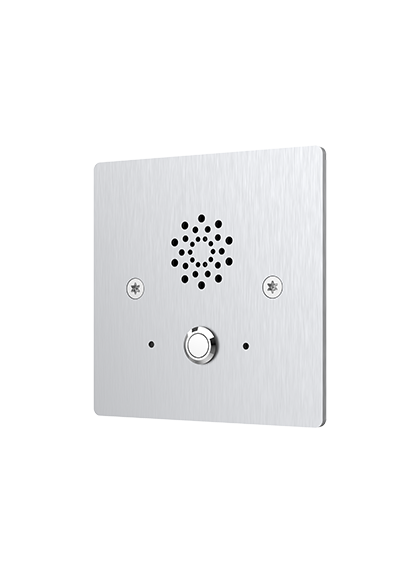

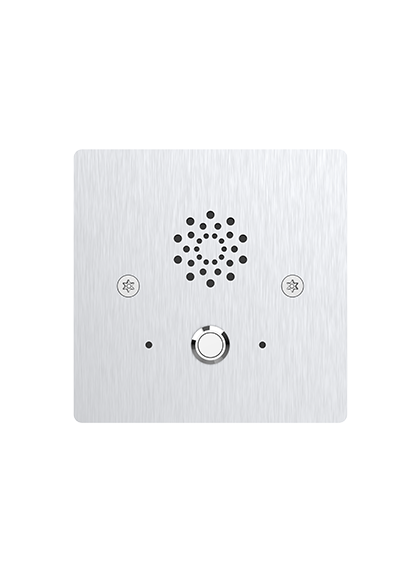

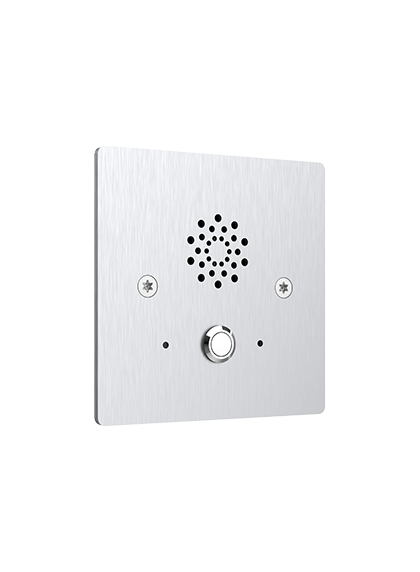

Akuvox E20S Emergency Push Button Station

The Akuvox E20S is a compact emergency push-button station designed for fast, reliable communication. It delivers instant assistance when every second counts. Moreover, its palm-sized design allows for discreet and professional installation.

Built specifically for indoor, flush-mount applications, the E20S is ideal for parks, stations, campuses, industrial facilities, and other public or restricted-access areas. As a result, it provides a dependable safety solution wherever secure communication is required.

Akuvox E20S Datasheet

Akuvox_E20_cutsheet

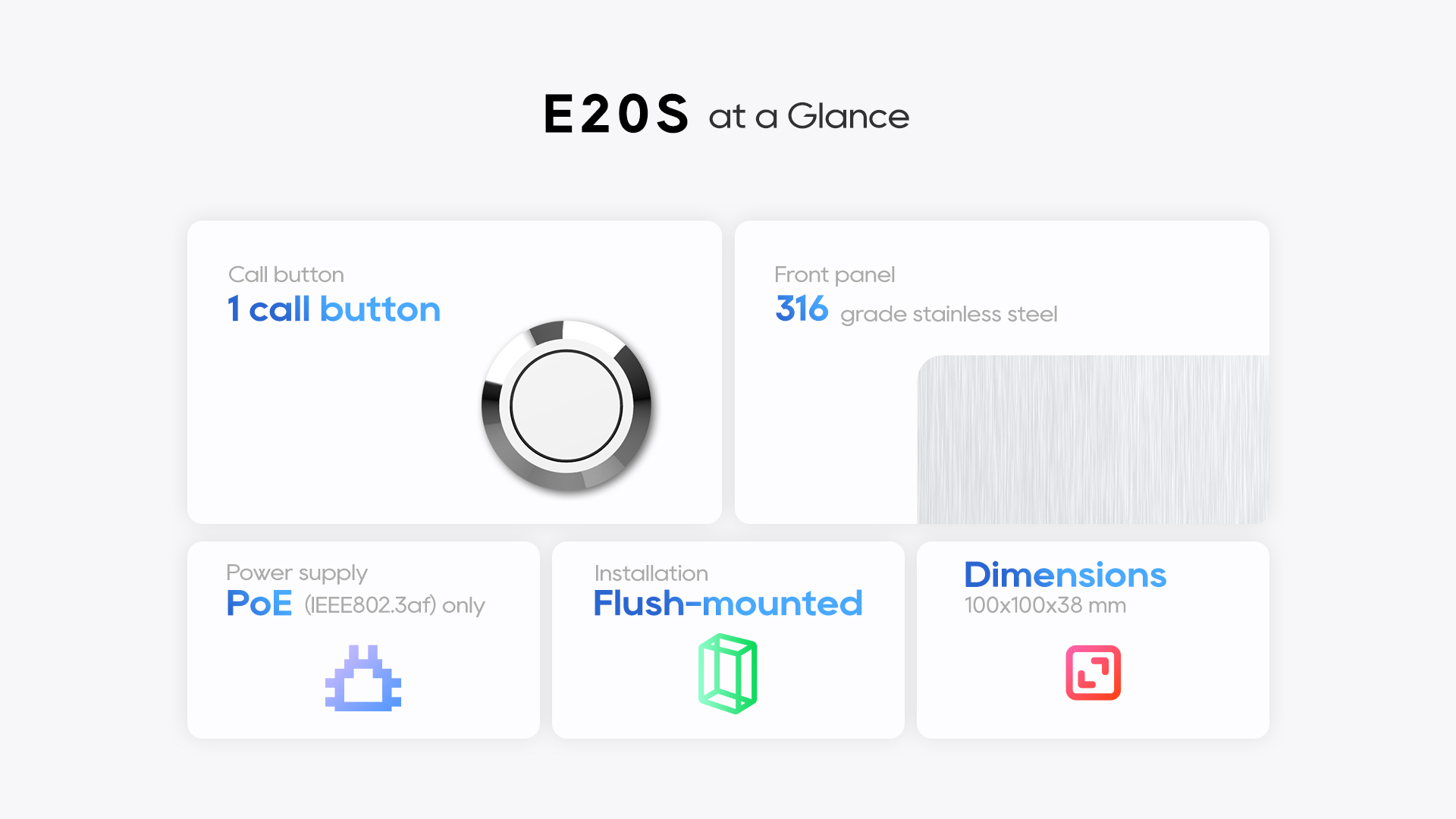

Physical & Power:

• Front panel: 316 grade stainless steel
• Button: 1 panic button
• Ethernet port: RJ45, 10/100Mbps adaptive
• Power supply: PoE (IEEE802.3af) only
• Indicator: 1
• Microphone / Speaker: 1 / 1
• Dimensions: 100x100x38 mm
• Installation: Flush-mounted
• Working Humidity: 10~90%
• Working Temperature: -20°C ~ +55°C
• Storage Temperature: -25°C ~ +60°C
• SIP Protocol: SIP v1 (RFC2543), SIP v2 (RF3261)
• SIP account: 1 SIP account
• Audio codecs: G.711a, G.711μ, G.722
• QoS support: Yes
• Auto Answer support: Yes
• Network mode: DHCP or Static IP
• System time: NTP for auto-time setting
• Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTP, TCP, UDP, ICMP, DHCP, ARP

Key Features & Benefits

Compact & Discreet Design
Measuring only 100 × 100 × 38 mm, the E20S remains unobtrusive. However, it still delivers exceptional durability and performance.

316-Grade Stainless Steel Construction
The premium stainless-steel front panel resists corrosion. Therefore, it remains reliable even in high-traffic indoor environments.

Vandal-Resistant (IK10 Rated)
Designed to withstand impact and tampering, the E20S performs consistently in public and high-risk areas. As a result, security is never compromised.

One-Touch Panic Button
A single, clearly marked button allows for immediate emergency activation. Consequently, assistance is fast, simple, and intuitive.

SIP-Compliant IP Intercom
The E20S integrates seamlessly with SIP-based PBX and VoIP systems. This allows for reliable two-way audio communication across IP networks.

Power over Ethernet (PoE)
PoE support carries data and power through one cable (IEEE 802.3af). This simplifies installation and reduces labour costs.

High-Quality Audio with Echo Cancellation
The built-in microphone and speaker deliver clear full-duplex audio. In addition, echo and noise suppression ensure communication remains intelligible during emergencies.

Typical Use Applications

• Emergency call points in apartment buildings and residential complexes

• Security stations in offices and commercial buildings

• Safety intercom points across campuses, warehouses, and industrial sites

• Public-access areas including car parks, transit stations, and communal facilities

Why Choose the Akuvox E20S?

The Akuvox E20S combines compact size, stainless-steel strength, and IK10 vandal resistance into a single professional-grade device. Furthermore, its SIP-based IP connectivity ensures seamless integration into modern security systems. As a result, it delivers long-term reliability, superior clarity, and fast emergency response—exactly what critical safety environments demand.
