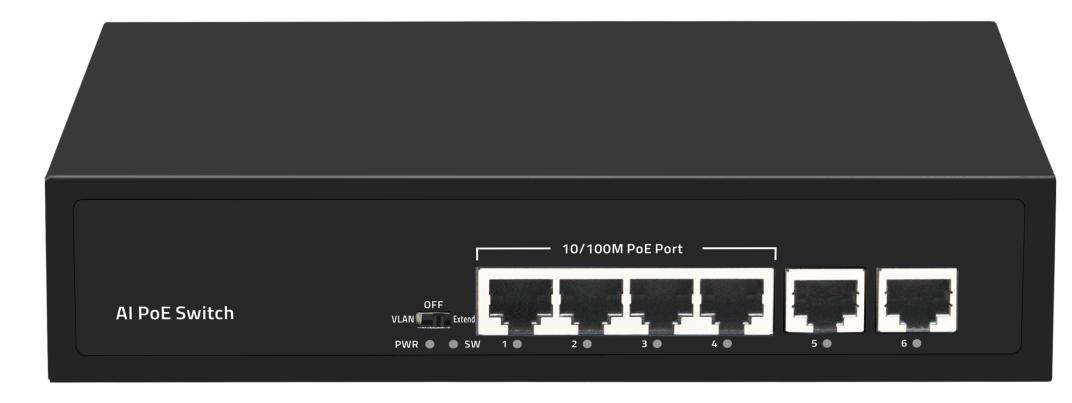

AN42N 4 Port PoE Switch
AN42N – ANG82NS POE switch user manual
Highlights:
- 4*100Mbps PoE ports+2*100Mbps uplink RJ45 ports
- Complies with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards
- RJ45 port supports 10/100Mbps adaptive
- PoE port automatically activates PoE watchdog mode in VLAN and Extend modes
- Flow control method: Full duplex uses IEEE 802.3x standard, while half duplex uses Back pressure standard
- Supports automatic port flipping (Auto MDI/MDIX)
- The panel indicator lights will monitor the working status and assist in fault analysis
- Supports three modes: VLAN, Default, and Extend
| Description | Specification |
| Model | AN42N |
| Interface | 4 *100Mbps PoE ports |
| 2 *100Mbps uplink RJ45 ports | |
| Port Standard | IEEE802.3 (Ethernet) |
| IEEE802.3u (Fast Ethernet) | |
| IEEE802.3x (Flow Control) | |
| Switching Capacity | 1.2Gbps |
| Packet Forwarding Rate | 0.8928Mpps |
| Packet Buffer | 768Kbit |
| MAC Address Table | 2K |
| Transmission Method | Store and Forward |
| PoE Standard | IEEE802.3af （15.4W） |
| IEEE802.3at （30W） | |
| PoE Port Output Voltage | DC 44-57V |
| PoE Ports | Port 1-4 PoE power output <30W |
| PoE Power Budget | 60W |
| Surge Protection | Surge protection: common mode 4KV |
| Operating Temperature | 0~40°C |
| Storage Temperature | -40 °C to 70 °C |
| Operation Humidity | 10%~90%，non condensing |
| Storage Humidity | 5%~95%，non condensing |
| Power Supply | AC 100-240V 50/60Hz |
| DC 52V 1.25A | |
| Mainboard Power Consumption | 1.93W |
| Structure Information | Product Dimensions: 200*118*44mm |
| Packaging Dimensions: 245*190*60mm | |
| Product Net Weight: 0.60KG | |
| Product Gross Weight: 0.86 KG | |
| Packing Information | Carton Dimensions: 520*320*400mm |
| Packing Quantity: 20PCS | |
| Packing Weight: 17.4KG | |
| Package Contents | Switch 1pcs, power cord 1pcs, manual 1pcs，certificate of qualification 1pcs |
| Fan Quantity | 0 |
| Installation | Desktop |
| Surge Protection | Surge protection: common mode 4KV, differential mode 2KV |
| Electrostatic ESD: Air 8KV, Contact 6KV (Class C) | |
| PWR | On: Powered on |
| Off: Powered off | |
| SW | On: VLAN |
| Blinking: Extend | |
| Off: Off | |
| 1-6 Green Light | On: Link normal |
| Off: Link blocked | |
| Blinking: Data transmitting | |
| VLAN/OFF/Extend Modes Buttons | VLAN: Isolation mode, 1-4 ports isolated from each other, communicating with 5-6 ports，and enable PoE watchdog mode on ports; |
| OFF: Normal mode, all interfaces can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100Mbps adaptive, and port PoE watchdog mode turned off; | |
| Extend: Link extension mode, 1-4 port PoE power supply and data transmission distance can be extended to 250 meters, transmission speed is 10Mbps，and enable PoE watchdog mode on ports; |
