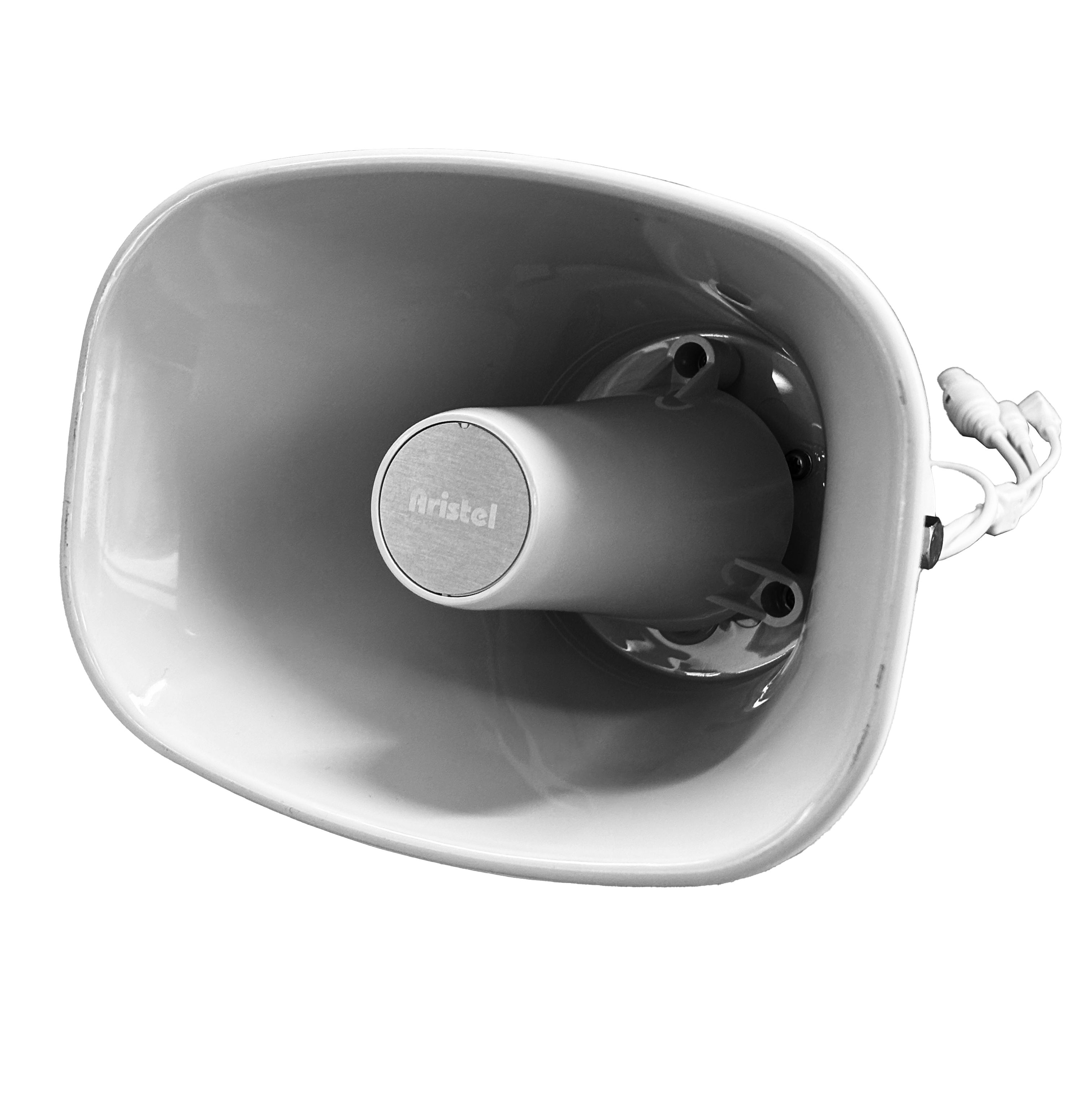

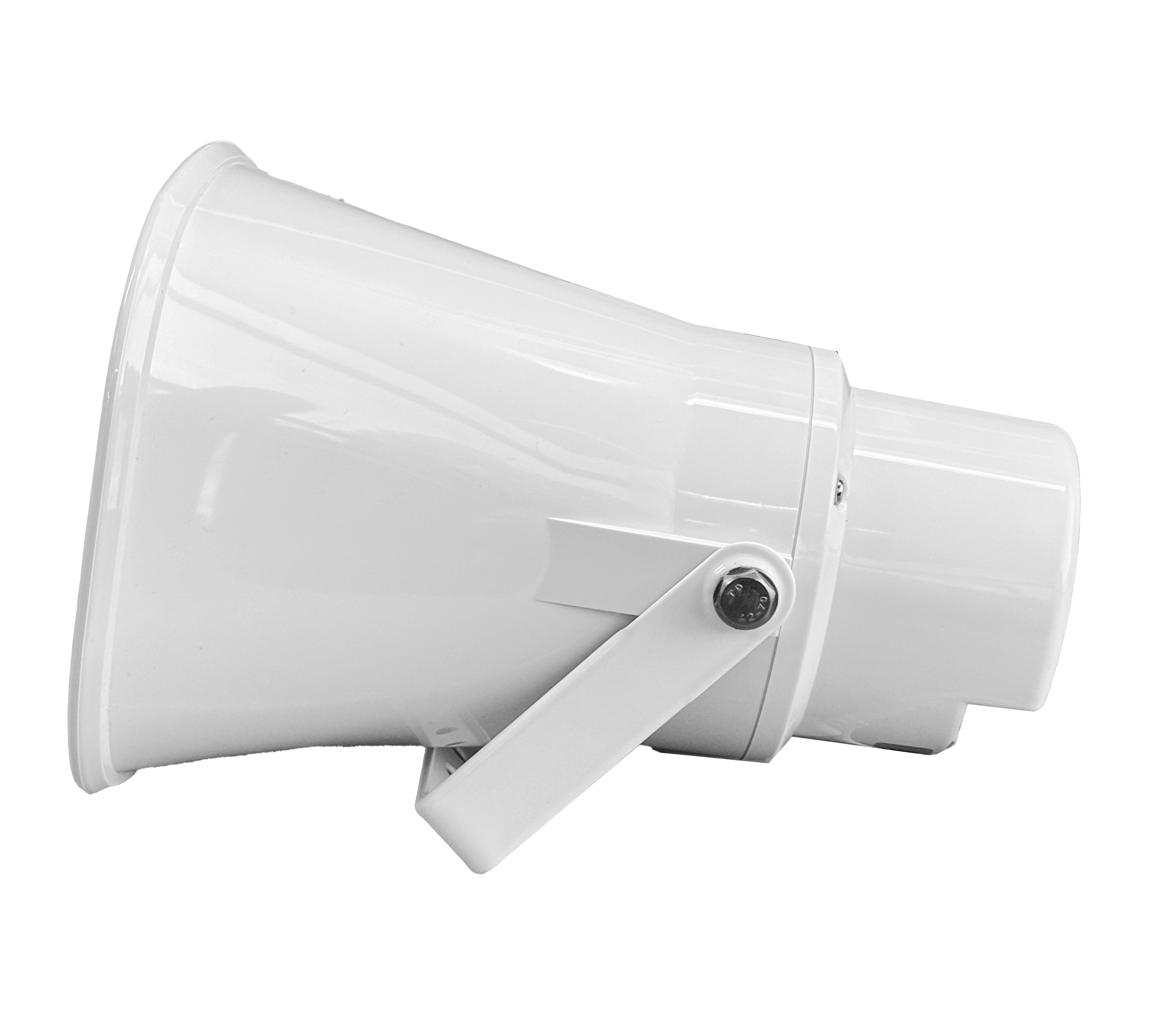

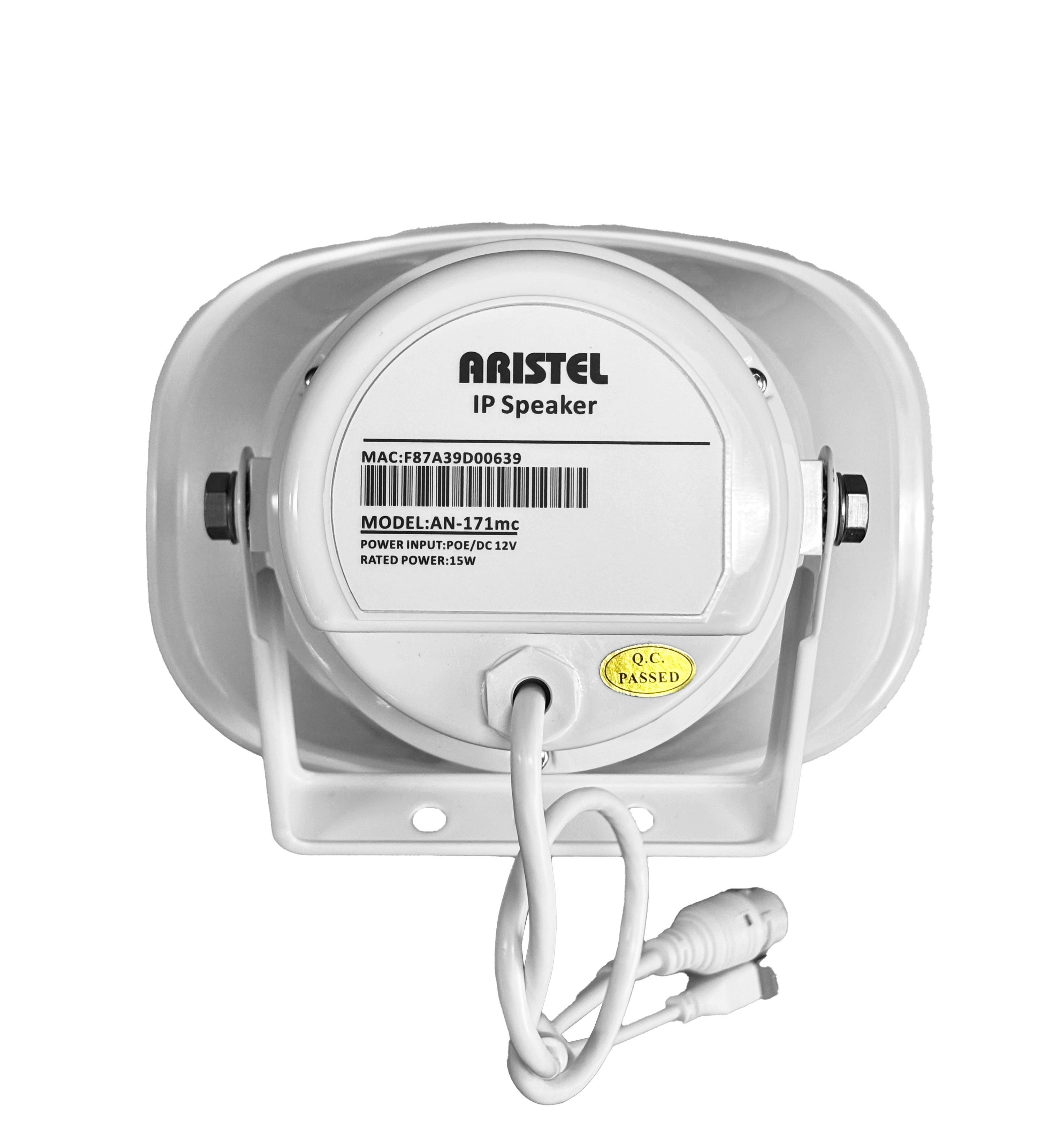

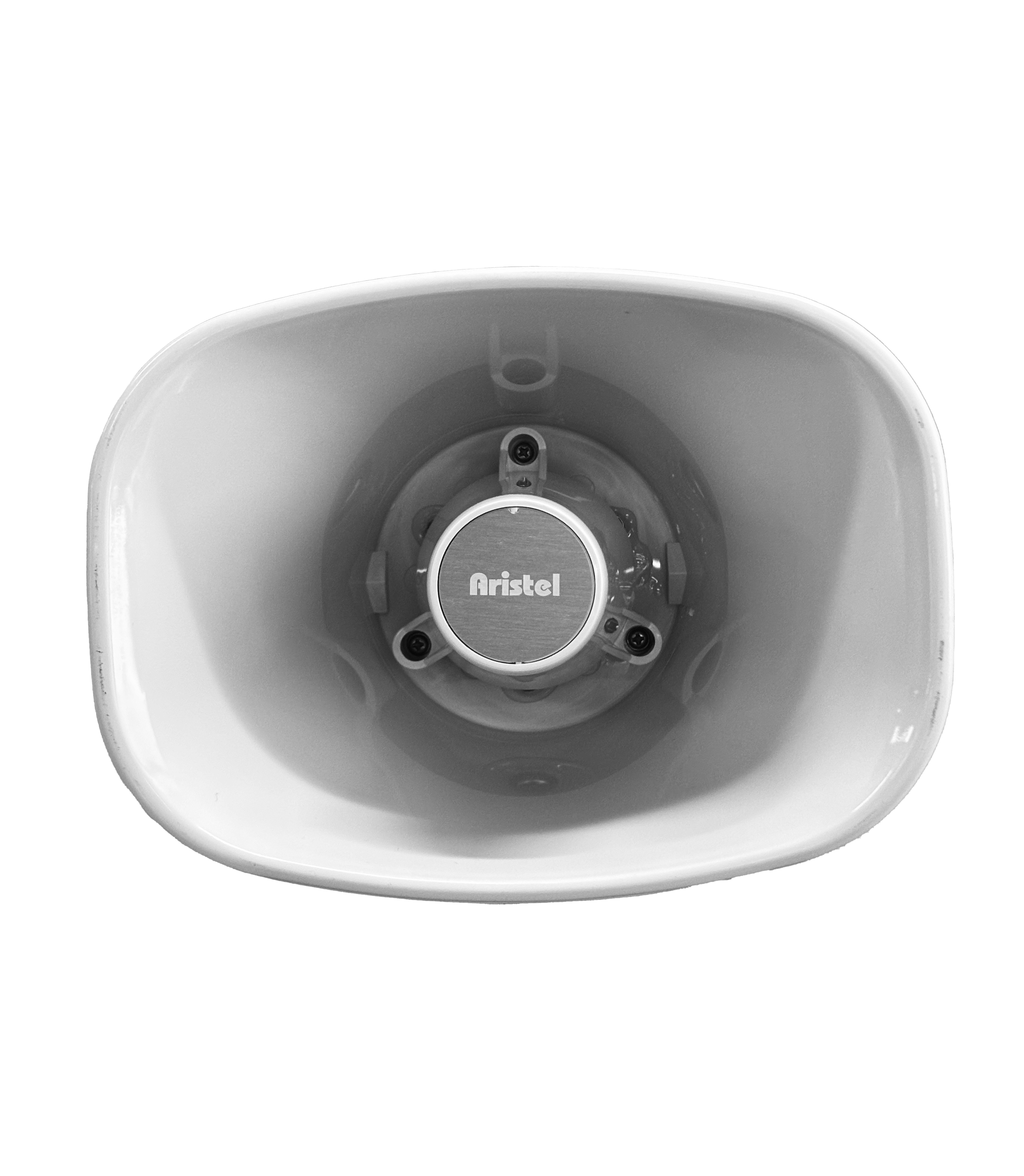

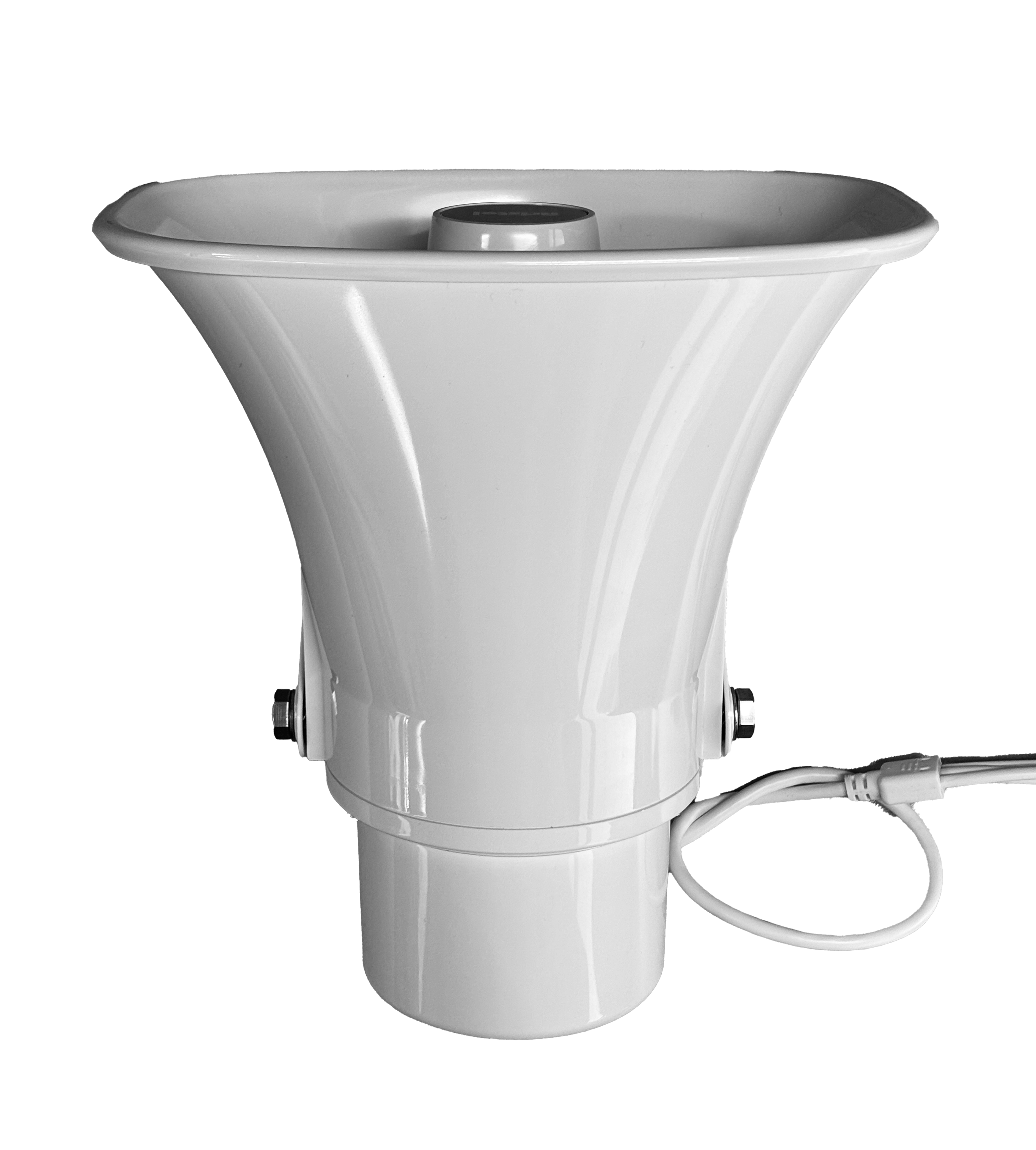

AN-171mc IP Speaker
AN-171mc IP Speaker
AN-171mc series is an IP-based paging speaker. They have different shapes, materials, and designs and can be easily installed indoors and outdoors. Aristel IP speakers are compatible with SIP & ONVIF protocols in VoIP and security fields. Up to 10 RTP multicast addresses enable the arrangement of different paging solutions. Alarms in an HTTP URL can combine with the alarm system: pre-recorded messages and scheduled broadcasting to meet various paging demands.it supports PoE 802.11af. The 48K OPUS Audio Codec enables excellent sound quality to make announcements, play background music, and set security alarms in schools, factories, hospitals, etc.
Features:
- IP67 Waterproof design for Outdoor Installation
- Supports PoE 802.11af, eliminating need for local power supply
- Supports DC12V Power if not using PoE
- 48K OPUS Audio Codec enables excellent sound
- Audio Codec – OPUS 48kHz, MP3 44.1kHZ, G.722 ADPCM 16kHZ, G.711 PCMU 8kHZ, G.711 PCMA 8kHZ
- Max SPL-113dB
- Frequency response – 300Hz~8KHz
- Built-in 15W Amplifier
- Supports web firmware upgrade for easy maintenance
- Network Protocol – SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP< NFS, NTP
- Network Interface – 10/100Base -TX, RJ45
- VoIP- Standard SIP protocol for compatibility with other SIP devices/VoIP systems
- Compatible with IP Camera VMA/NVR via ONVIF
- Supports pre-recorded messages
- Supports HTTP API for alarm transmission
- Supports RTP Multicast as an alternate to SIP backend system
- Security – Password protection, IP address filtering, Digest authentication, User access log
- Wall Mounted
- Dimensions – 225 x 165 x 240mm
- Weight – 1.4kg
- Warranty – 1 Year
