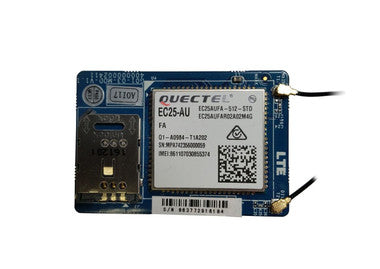

4G LTE Module for S + P Series
Additional information
| Weight | 40 g |
|---|---|
| Dimensions | 70 × 50 × 20 mm |
4G LTE Module for S + P Series – Yeastar
Yeastar 4G LTE Module provides 4G cellular data on SIM card, making the 4G LTE become the primary Internet connection for P-Series Phone System and S-Series VoIP PBX. Supporting the 4G network standard, the 4G capable Yeastar PBX can register SIP trunks and make SIP calls with high speed built-in data. It is ideal for business needs like temporary locations, mobile offices, and places where fixed-line broadband is not available.
With 4G LTE failover, SIP trunks are even more resilient.
Place the phone call over LTE connection, you can expect faster voice connection, high-definition call quality and other benefits that VoLTE brings to companies.
4G LTE as the primary Internet connection* for P-Series Phone System & S-Series VoIP PBX
*Please note that 4G LTE module cannot be used as a 4G router, and for S-Series the 4G LTE data feature is only supported on the hardware version V2.
| Module | 4G LTE Module | ||||
| Type | 4G LTE Module-E* | 4G LTE Module-A* | 4G LTE Module-AU* | 4G LTE Module-CE* | |
| Network Type | UMTS (WCDMA) 3G / LTE | ||||
| Frequency |
LTE FDD: B1/B3/B5/B7/B8/B20 |
LTE FDD: B2/B4/B12 |
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 |
LTE FDD: B1/B3/B5/B8 |
|
| SMS | Yes | ||||
| MMS | No | ||||
| Voice Call | 3G/4G Voice Call | ||||
| SIM Card | 3G/4G Standard SIM Card | ||||
| Data | 3G/4G Data (cannot be used as a 4G router; only supported on S-Series hardware version V2) | ||||
| 3G Data Speed | Max 384 Kbps (DL) / Max 384 Kbps (UL) | ||||
| LTE Data Speed | LTE-FDD: Max 150 Mbps (DL) / Max 50 Mbps (UL); LTE-TDD: Max 200 Mbps (DL) / Max 35 Mbps (UL) | ||||
| Module Insertion (LTE Data) |
S412: T_Slot3; S20&S50: Module Slot 1; S100&S300: Module Slot 1, Expansion Board 1 | ||||
| Module Insertion (LTE Voice) |
S412: T_Slot3 or T_Slot4; no place limitation for S20/S50/S100/S300 | ||||
| Call Waiting | No | ||||
| Call Forward | Yes | ||||
| RF Cable | Insert on the MAIN T1 of the 4G LTE module | ||||
| Antenna | The 4G LTE Module can be used with one RF cable and one antenna. (To strengthen signal, 2 RF cables can be installed but 2 antenna ports will also be occupied with the exception of S20.) |
||||
| Model | S412, S20, S50, S100, S300 (Version 30.4.0.25 or higher) | ||||
